Can I Use AI To Make Models For 3D Printing?

By Caleb Kraft

With all the hubbub around generative AI, it isn’t a stretch to start wondering in what new areas of making we might see this stuff proliferate. You can easily have ChatGPT write text for you or analyze your writing. You can instruct Midjourney, Dall-E, and other image generators to draw highly detailed, pixel-perfect creations in a variety of styles. What about 3D printing though? Can you type into a text box and obtain the perfect custom 3D printable model? Right now the answer is: kind of. However, in the very near future, that answer might be a resounding yes.

As of winter 2023–24, there really aren’t any systems advertised with the intent of 3D printing, so I’ll talk about the general concept of text to 3D model. This goal was out of reach a year ago when we published our guide to “Generative AI for Makers” (Make: Volume 84). In the short time since, the landscape of AI has been changing extremely fast and now we have a few different options for playing with text-prompted 3D model generators.

Ultimately, these tools are primarily focused on video game assets, so there are issues with 3D printing. While they do technically work, what you’ll see is that the current generation of AI model generators relies on the color layer to convey many details that simply will not exist when you 3D print. This means your print may be blobby, lacking details, or even oddly formed.

There are a few places where you can try this kind of thing, such as 3DFY.ai, Sloyd, Masterpiece X, and Luma AI. Since Luma is free and easy, I tried it. [ https://lumalabs.ai/ ]

Text Prompt to 3D Model

In Figure A you can see the results of the prompt “cute toad, pixar style, studio ghibli, fat.” (Don’t judge me, I know what I like.) The textured version looks OK from certain angles, but we can see the feet and belly have some issues (Figure B), and fine detail is lacking (Figure C).

3D Model to 3D Print

I had to convert the GLB file that was output by Luma AI to an STL file using Blender (Figure E),
but aside from that, it was ready to print. What you see in Figure is the result of a successful print from my Bambu X1 Carbon.

While we can now say that we have used AI to generate a 3D printable model, we can also see that the geometry around the belly is very messed up. Printing it this way resulted in trapped supports that caused a mess when trying to remove them. I could bring this into modeling software and rebuild the feet and belly but at that point, with those skills, what do I need the AI for in the first place?

We’ve already seen 2D AI generative tools built into laser cutter software such as the xTool Creative Space. As these 3D tools improve, I can envision a near future where this kind of AI is built into slicers. Very soon you might just open your slicer, tell it what object you want, pick the best result, and hit Print!

This article first appeared in Make: Volume 88.

URL

https://makezine.com/article/technology/artificial-intelligence/can-i-use-ai-to-make-models-for-3d-printing/

Toy Inventor’s Notebook: Fun With Pop-Up Stamps
By Bob Knetzger

Even in an age of emails and texts, stamp collecting is still a favorite hobby of adults and kids. You can explore and learn about lots of things: geography, history … and toys.

There are lots of U.S. postage stamps that commemorate classic toys, and some novelty stamps are toy-like and fun in themselves!

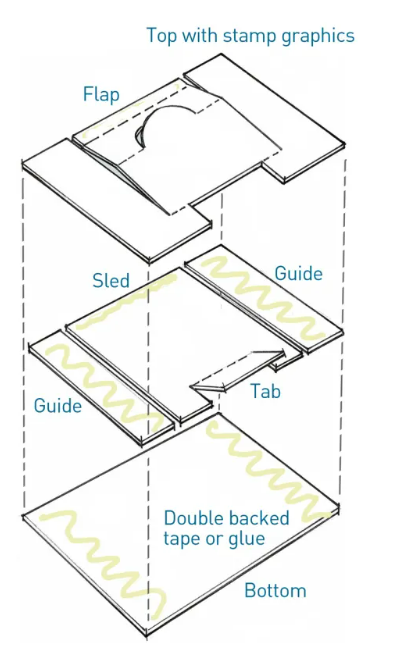

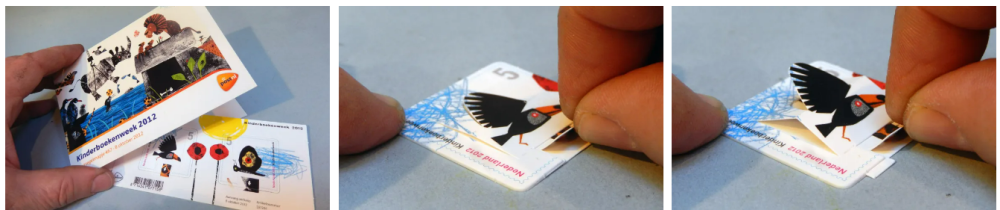

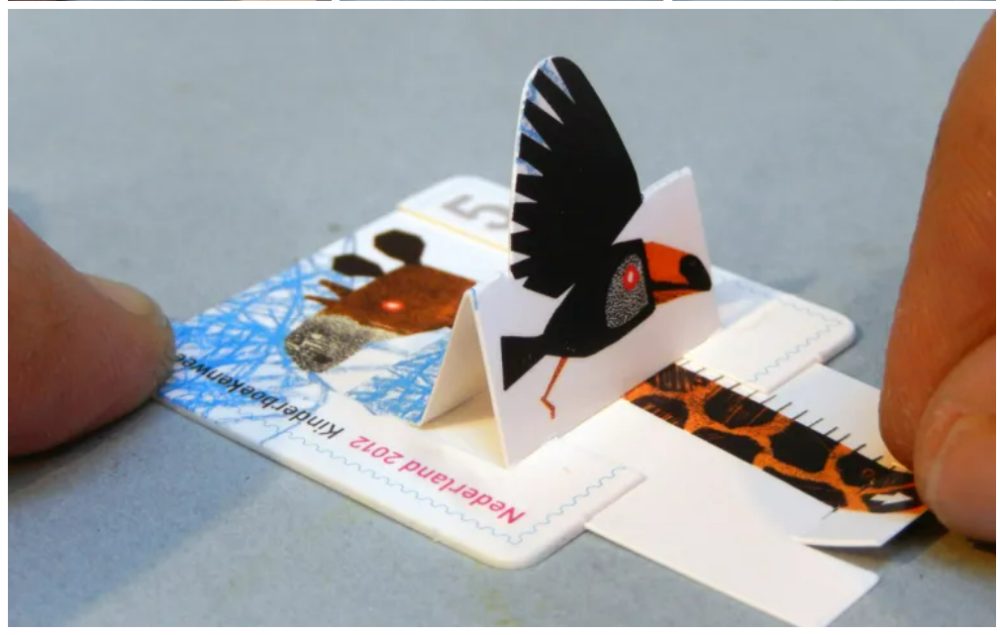

This 2012 stamp from the Netherlands (below) was made to commemorate a Children’s Book Fair. This gummed stamp is a working pop-up toy. The cleverly engineered three-layer design has a top layer with the stamp graphics, a middle layer with a “sled” between two side guides, and a base layer. When pulled, the sled slides along, bending and folding a flap, which pops up revealing a cut-out shape. When pushed, the stamp goes flat again.

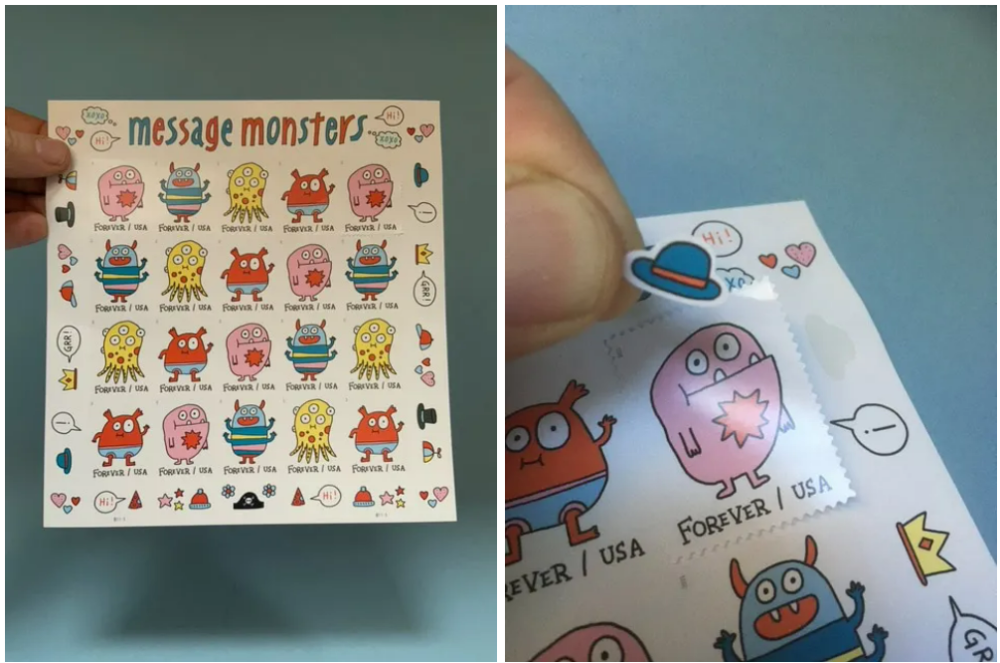

The latest toyetic stamp design is this sheet of “Message Monsters” from the USPS. They’re real “Forever” postage stamps but with a fun gimmick: the border of the peel-and-stick sheet is filled with extra stickers of hats, talking balloons, hearts and stars. Use the silly monster themed stamps on your mail, then add the extra stickers to make your own silly monster designs!

(Tip to parents of little kids: cut the fun “free” stickers off from the sheet of stamps — before they use up the expensive stamps on non-mail!)

You can make your own pop-up stamp like I did. I used a USPS commemorative stamp of a Hot Wheels car on some heavy paper.

Project Steps

MAKE A POP UP STAMP

First, choose which part of your image you’ll make “pop up.” With a sharp hobby knife cut two slits to make a flap, then cut around your pop-up shape. Gently score on the fold lines with a nail or hard pencil. For best pop-up effect, the middle fold line should be centered between the other two folds.

Cut out a sled and two side guides from more heavy paper. Make the sled a little wider than the width of the flap and cut two slits to make a little pull tab. Use double-backed tape or glue to fasten the guides onto the base so the sled slides smoothly between them.

Then tape the guides to the top and use a tiny strip of tape to fasten the flap to the very end of the sled. Cut and glue a matching tab from the stamp to cover the sled tab. Lastly, trim all three layers to a neat, final size.

You can make this sliding pop-up design with any size printed image: greeting card, photograph, drawing. Go wherever it leads you!

CONCLUSION

Find more fun novelty stamps with the Exploring Stamps YouTube channel.
